Live-Saving Tools For Emergency Responders & Public SafetY

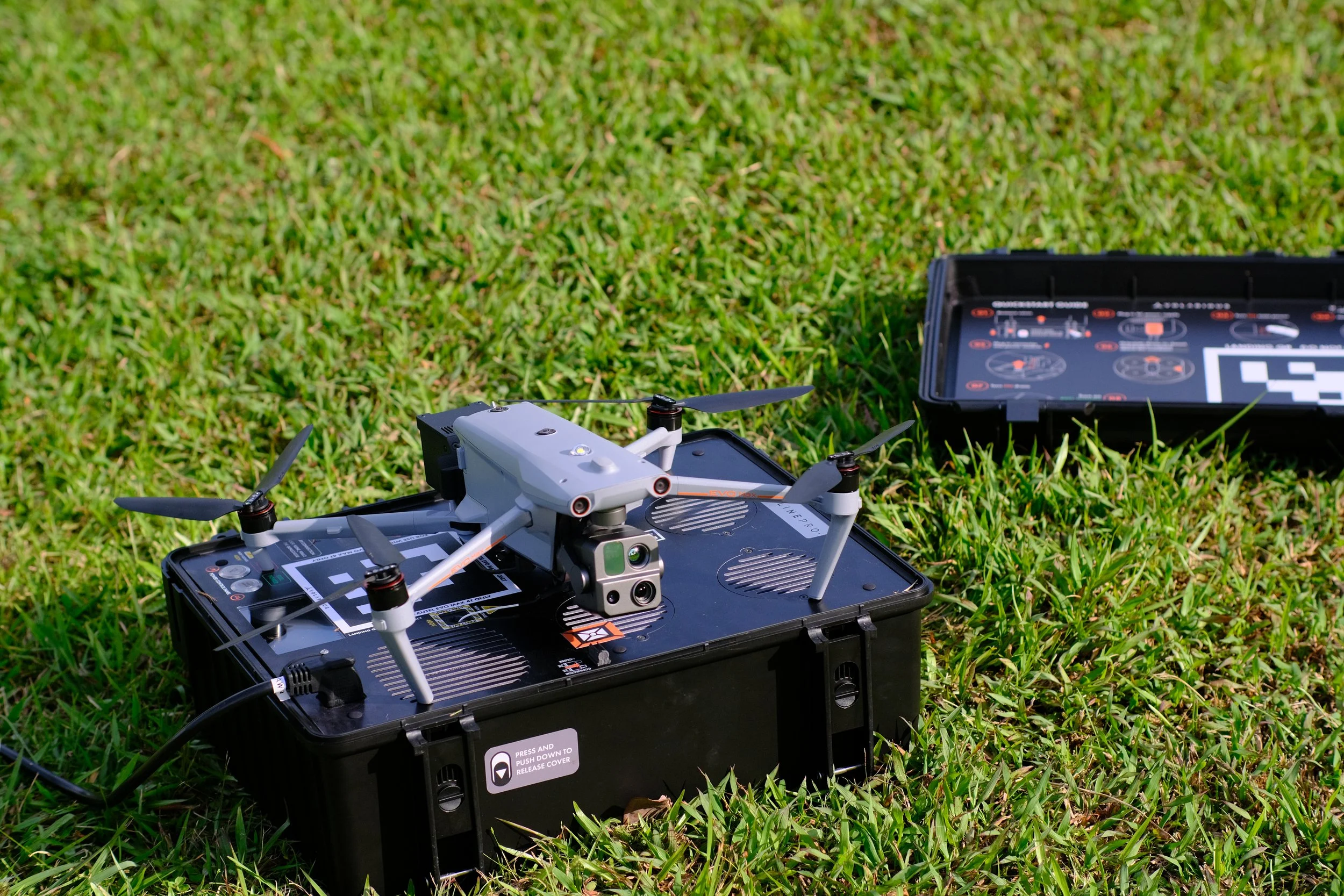

V-Line Pro tethered system offers continuous aerial monitoring without the need for battery changes, enabling officers to concentrate on analyzing critical situations and issuing precise commands to their teams. The system's user-friendly design requires just a single operator.
How Does It Save Lives?
Unlimited power up to 70 meters (230 feet), combined with the Autel Evo Max 4T's 10x optical zoom capability grants officers a crystal-clear aerial view of their surroundings.
Complete View Of The Whole Scene
No Battery Swap
EVERY SECOND COUNTS! Constant power supply to the drone, eliminating the need for disruptive battery changes during critical operations. Downtime is no longer a concern.
A compact & lightweight tool & easy to use. A single officer can maintain aerial presence, analyze situations, and provide direct commands to their team.
Easy To Operate
Main FEATURES
Unlimited Flight Time
The tethered system provides power for the drone, allowing it to hover for an extended period of time, thereby giving an advantage in situational awareness. Tested over 24 hours reliability.
70 Meters / 230 Feet Tether Cable
With lightweight aviation grade power cable & auto tension adjustment without slack.
Future Software Updates
Upcoming software updates, A-Mesh feature. This technology will enable Autel drones to function as a mesh network.
Light And Compact
Available in backpack option and weighs 17kg. With dimensions of 470 x 365 x 190 mm.
Rapid Deployment
Fit in any public safety vehicle. Ready under 60 seconds.
Auto Tension Reel System
Industry leading drone speeds of 8m/s (ascend) and 3m/s (descend) without exerting high tension.
MODIFICATIONS
Hook Attachment
Install a hook attachment to secure the tether cables at the bottom part of the drone.
All modifications are performed within the power module, and you can still take advantage of your warranty for this work.
No Major Modification
RECOMMENDED POWER SUPPLY
EcoFlow Delta Pro
(5 Hours)
Honda EU2200i
(8 Hours)
INTRODUCING V-ASSIST
V-Assist, our latest mobile app for Android devices enabling seamless communication and control. With V-Assist, you can easily connect to your V-Line Pro via WiFi and access real-time telemetry data right on your mobile device. Keep track of crucial flight metrics, including altitude, speed, and battery life, ensuring a safe and efficient flight operation.
*This app can be used in conjunction with the Autel Explorer app.
Specifications
V-Line Pro Tethered Reel System
Dimensions: 470 x 365 x 190 mm
Net Weight : 17.0 Kg
Input Voltage : 90 - 264VAC (1100W)
Output Voltage : 350 VDC - 410 VDC
Operating Temp : -10°C - 50°C (14F - 122F)
Max Tether Operating Range : 70m (230ft)
Power Supply Cable : IEC320 C19
Built in protection : Circuit Breaker
Micro tether management : 5 m/s (16.4 ft/s) outwards, 3.5 m/s (11.5 ft/s) inwards
V-Line Max 4T Power Module
Dimensions: 211 x 100 x 61 mm
Net Weight : 905g
Input Voltage : 300-410 VDC (600W)
Output Voltage : 15.0 VDC - 16.5 VDC
Operating Temperature : -10°C - 50°C (14F - 122F)
Backup Battery Flight Time : 20 Mins

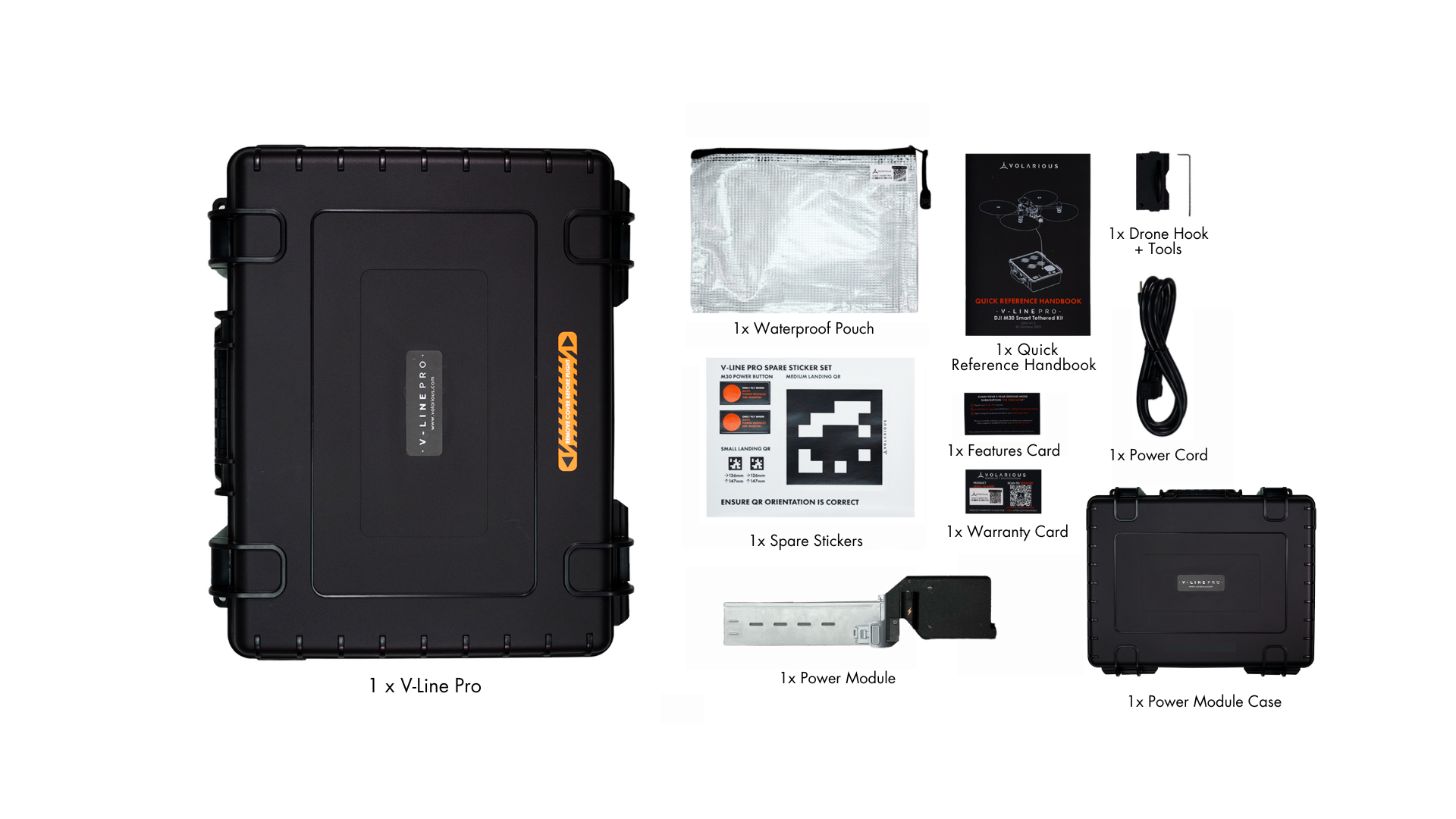

Whats inside the package
designed and manufactured in singapore
Frequently Asked Questions
Can a single unit be use for both M30T and Max 4T?
- No. You will have to buy a separate unit.
What happens if the ground power is cut?
- The drone battery will kick in and supply power to the drone. At battery critical level, the drone will auto land.
Will there be warranty? How long?
- Yes there will be warranty for 1 year.
How compact is it?
- Its dimensions are 47cmx36.5cmx19cm. It weighs 17 kg and can be carried with one hand.
Will the tether cable be able to transfer data?
- No, It is only use for power supply purpose.
Can I still claim Autel warranty after I use it with V-Line Pro?
- Yes. We modified the battery to make it compatible without internal body modifications.
When and where can I make the order?
- Through our dealers around the world.
