VESPER TETHERED DRONE SYSTEM
V-Line Pro tethered system compatible with Blue UAS drones, Volarious has launched the V-Line Pro, featuring a 25-meter (82 feet) tethered line and a new DC powered tether station. This system enables infinite flight times through hot swapping capabilities, elevating drone performance and providing users with extended flight durations and improved operational efficiency.
The V-Line Pro comes equipped with the new companion app, V-Assist, which displays critical data to users and can work seamlessly as a floating app with other drone apps like Autel Explorer. This app enhances the user experience, enabling officers to analyze critical situations and issue precise commands to their teams
Elevating Drone Performance with Vesper Compatibility
With a 25 meters (82 feet) tethered line and the new DC powered tether station allows users to achieve infinite flight times through hot swapping capabilities. Equipped with V-Assist, the system's intuitive design allows for single-operator use, enabling officers to focus on analysing critical situations and issuing precise commands to their teams.
Extend Your Flight Time to 7 Hours
With V-Line Pro, your Vesper drone can now soar for up to 7 hours on a single battery charge. This unparalleled endurance ensures that you can complete your missions without the need for frequent battery changes, maximising productivity and efficiency.
Hot Swappable Design for Continuous Operation
V-Line Pro's DC power allows users to swap out a depleted battery for a fresh one without the drone having to land. This means that you can keep your drone in the air indefinitely, making it ideal for long-duration missions and critical operations.
Introducing V-Assist
V-Assist, our latest mobile app for Android devices enabling seamless communication and control. With V-Assist, you can easily connect to your V-Line Pro via WiFi and access real-time telemetry data right on your mobile device. Keep track of crucial flight metrics, including altitude, speed, and battery life, ensuring a safe and efficient flight operation.
*This app can be used in conjunction with the original drone app.
V-Line Pro Vesper Specifications

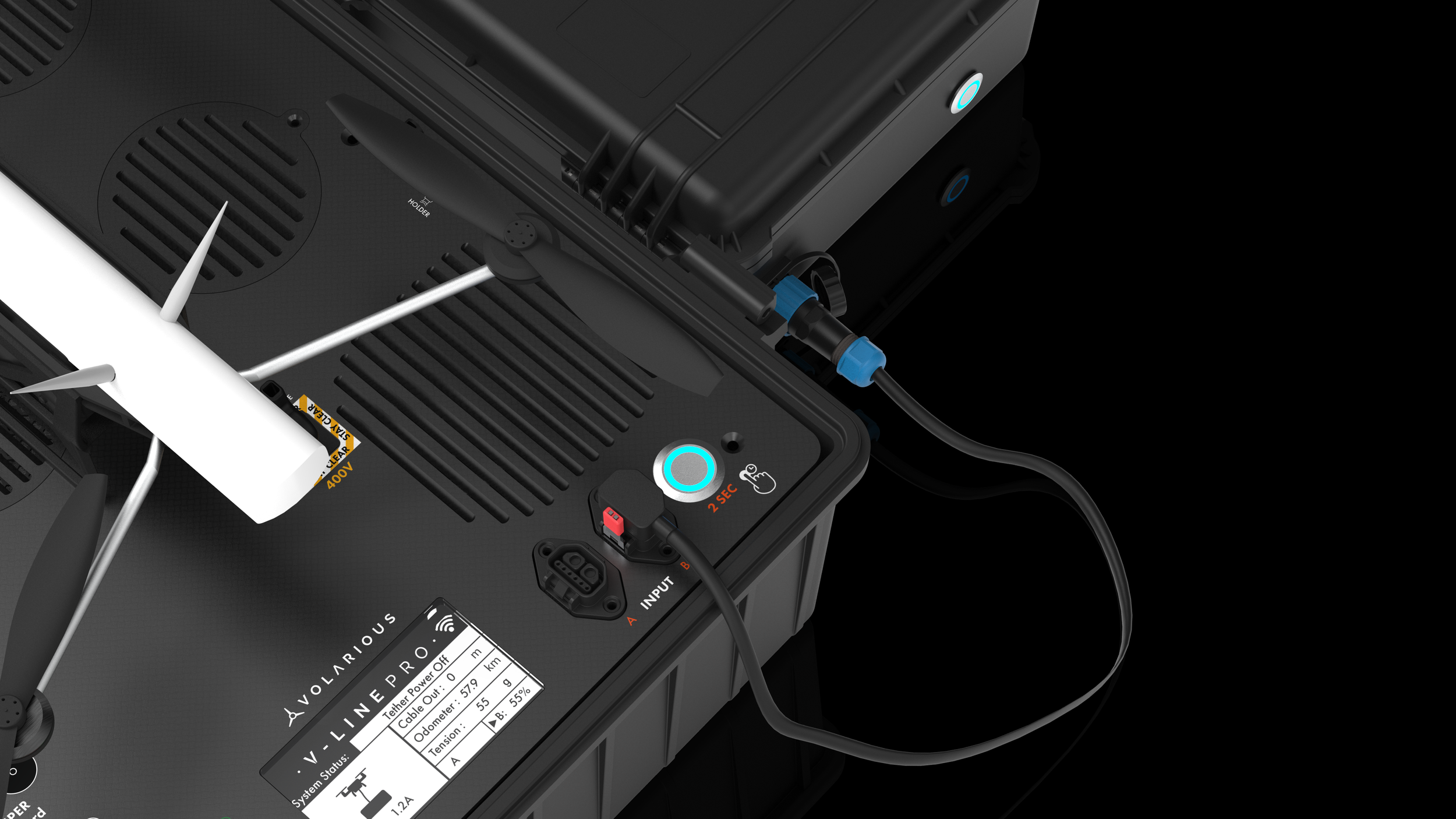

V-Line Pro Tethered Reel System for Vesper
Dimensions: 470 × 365 × 190 mm
Net Weight: 14.5 Kg
Input Voltage: 22 - 28VDC
Maximum Power Consumption: 450W
Output Voltage: 380 VDC - 410 VDC
Maximum Output Current: 1.3A
Operating Temp : -10°C - 50°C (14F - 122F)
Max Tether Operating Range: 25 m (82ft)
Built-in protection: Fuse
Micro tether management: 5 m/s (16.4 ft/s) outwards, 3.5 m/s (11.5 ft/s) inwards
Recommended Power Supply.
JoulesPack JP2000 (7 hours)
Battery Type: LiFePO4
Nominal Voltage: 25.6 V
Rated Capacity: 80 Ah
Rated Energy: 2048 Wh
Maximum Continuous Discharge Rate: 25A
Vesper Power Module
Dimensions: 110x65x55 mm
Net Weight: 265 g
Input Voltage: 350-410 VDC
Output Voltage: 15.0 VDC - 17.0 VDC
Maximum Output Current: 20A
Operating Temperature: -10°C - 50°C (14°F - 122°F)
Backup Battery Flight Time: 2 Min 30 Sec
Vesper Camera:
Camera: Dual 4K Sony IMX 334 EO image sensors, 3840 x 2160 px 8 MP still images
Video Format: 1080 or 4K MPEG-4
Thermal: 320 x 240p uncooled vanadium oxide with 65 mK sensitivity
